| Category | Detailed Parameters | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW |
| System Voltage | Nominal Battery System | 12/24/48VDC | 12/24/48VDC | 12/24/48VDC | 12/24/48VDC | 24/48VDC | 24/48VDC | 24/48VDC |
| Inverter Output | Continuous Output Power | 1kW | 1.5kW | 2kW | 3kW | 4kW | 5kW | 6kW |
| Surge Rating (VA) | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA |
| Motor Starting Capacity | 1 HP | 1.5 HP | 2 HP | 3 HP | 4 HP | 5 HP | 6 HP |
| Waveform / Efficiency | Pure Sine Wave / Peak Efficiency >88% / Line Mode >95% |
| Output Voltage / Freq | 100V-240VAC (Optional) / 60/50Hz ± 0.3Hz |
| AC Input | Voltage Range | 100V-240VAC / Selectable Range: 92-253VAC (for PC) |
| Charger | AC Input Breaker | 15A | 15A | 20A | 30A | 30A | 40A | 40A |
| Max Charge Current | 30A | 30A | 30A | 30A | 30A | 30A | 30A |
| Bypass Protection | Bypass Breaker Rating | 15A | 15A | 20A | 30A | 30A | 40A | 40A |
| Max Bypass Current | 30Amp | 30Amp | 30Amp | 30Amp | 30Amp | 30Amp | 30Amp |
| Mechanical Specs | Machine Size (mm) | 360*185*180 | 360*185*180 | 420*185*180 | 420*185*180 | 597*195*190 | 597*195*190 | 597*195*190 |
| Net Weight (N.W) kg | 13.5 | 14 | 17 | 21 | 27 | 29.5 | 30.5 |
| Gross Weight (G.W) kg | 15.5 | 15.5 | 19 | 23.5 | 29.5 | 31.5 | 32.5 |
| Certification | Standards | FCC, CE (EN), RoHS |

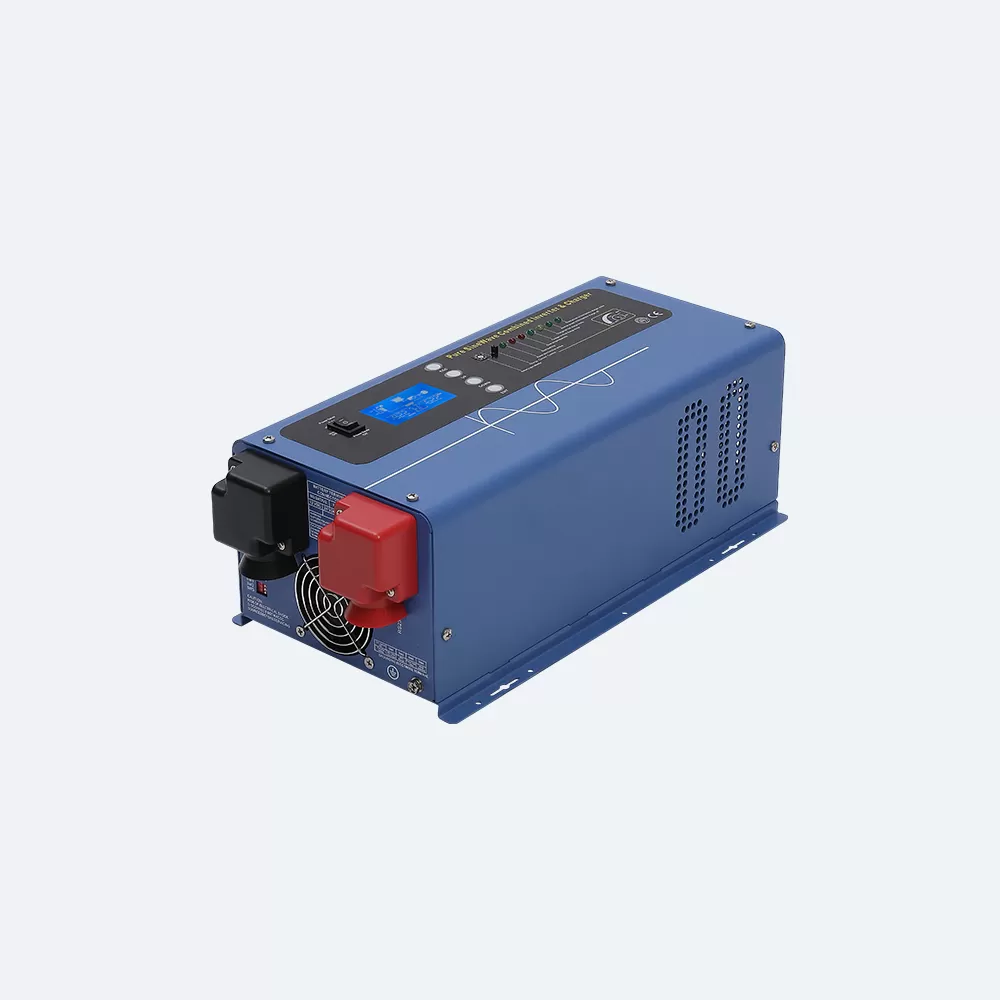

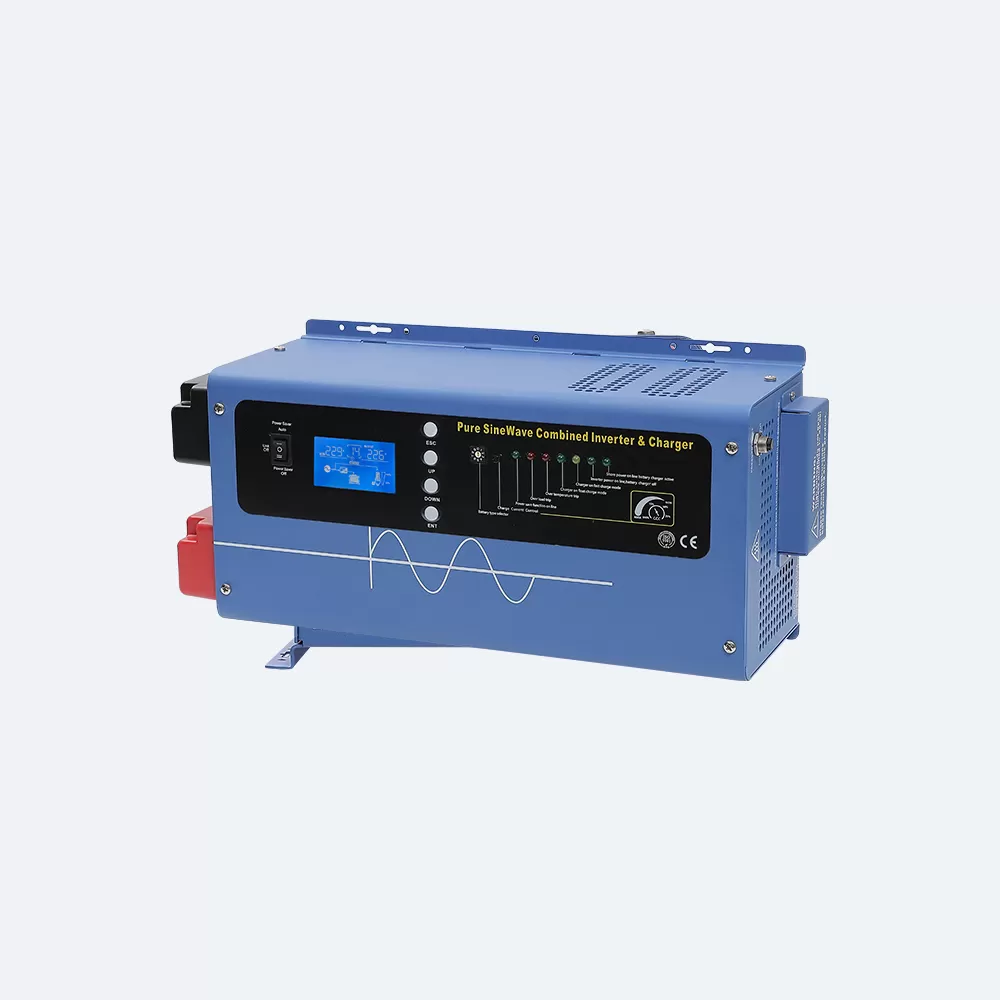

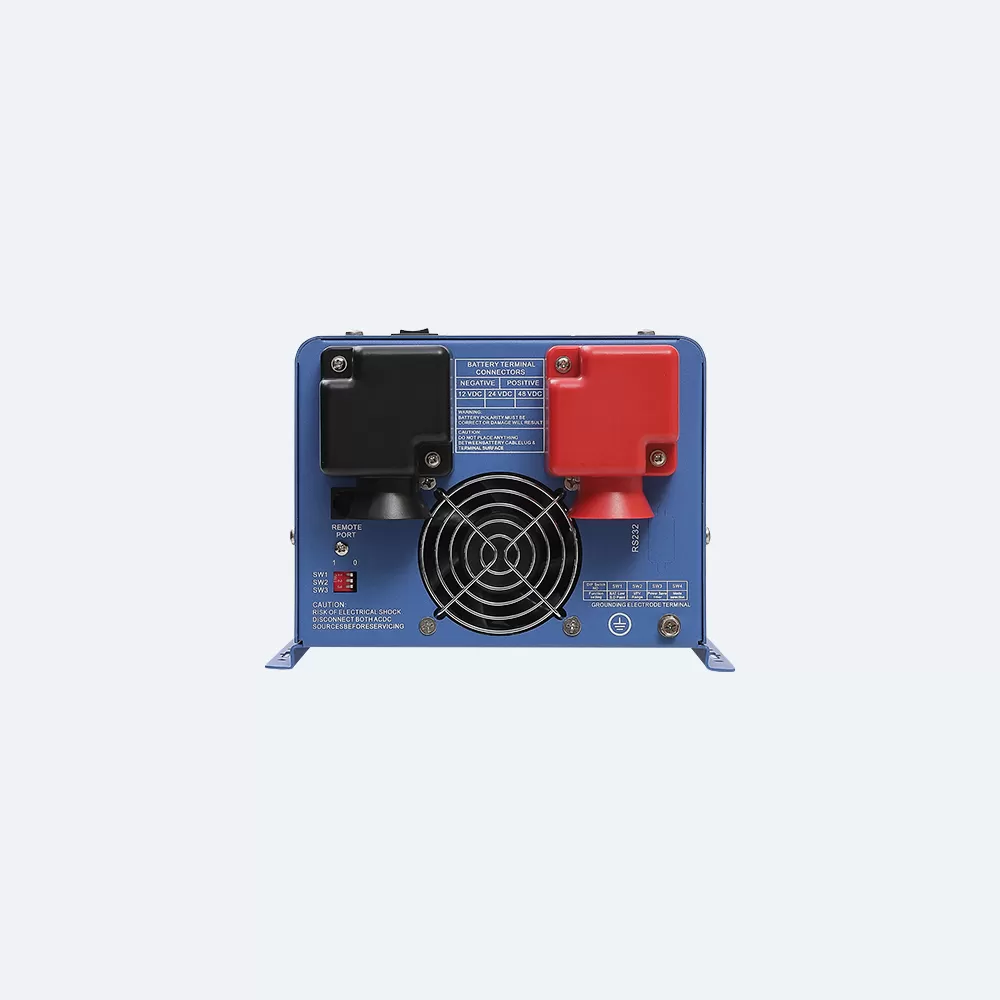

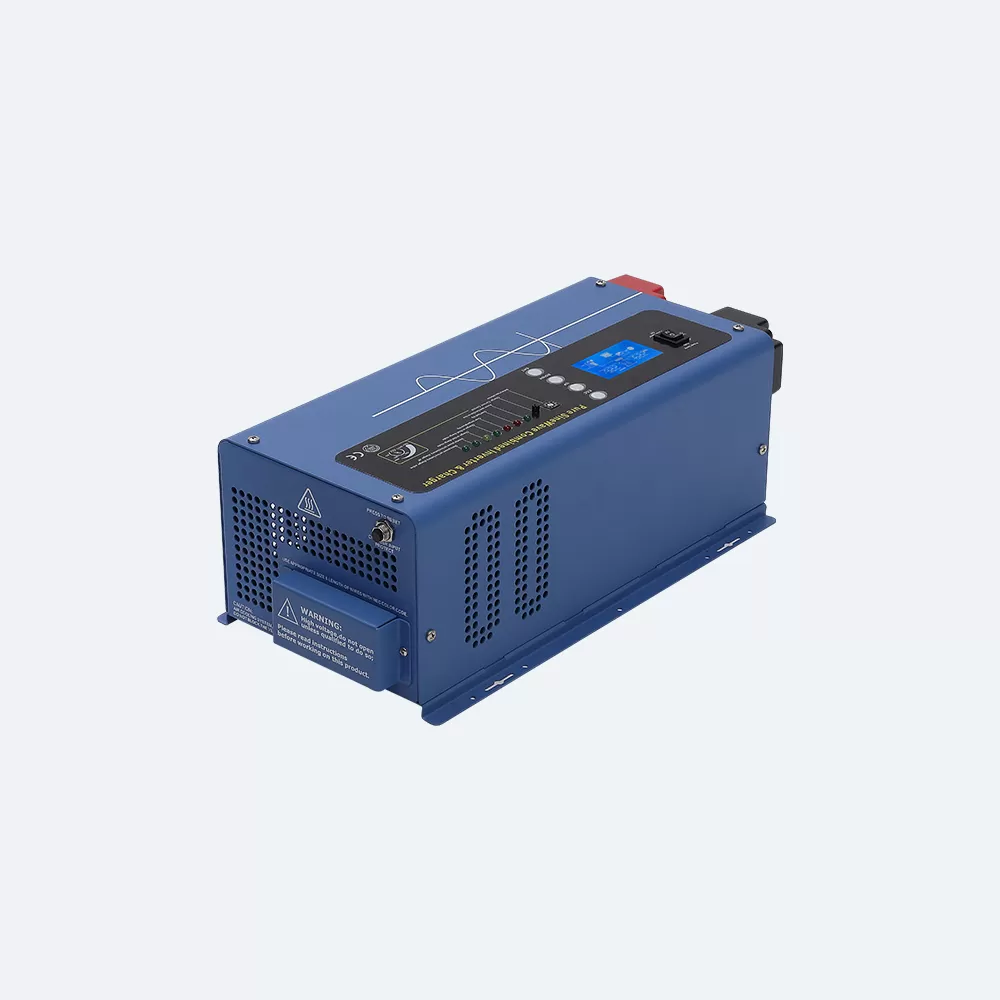

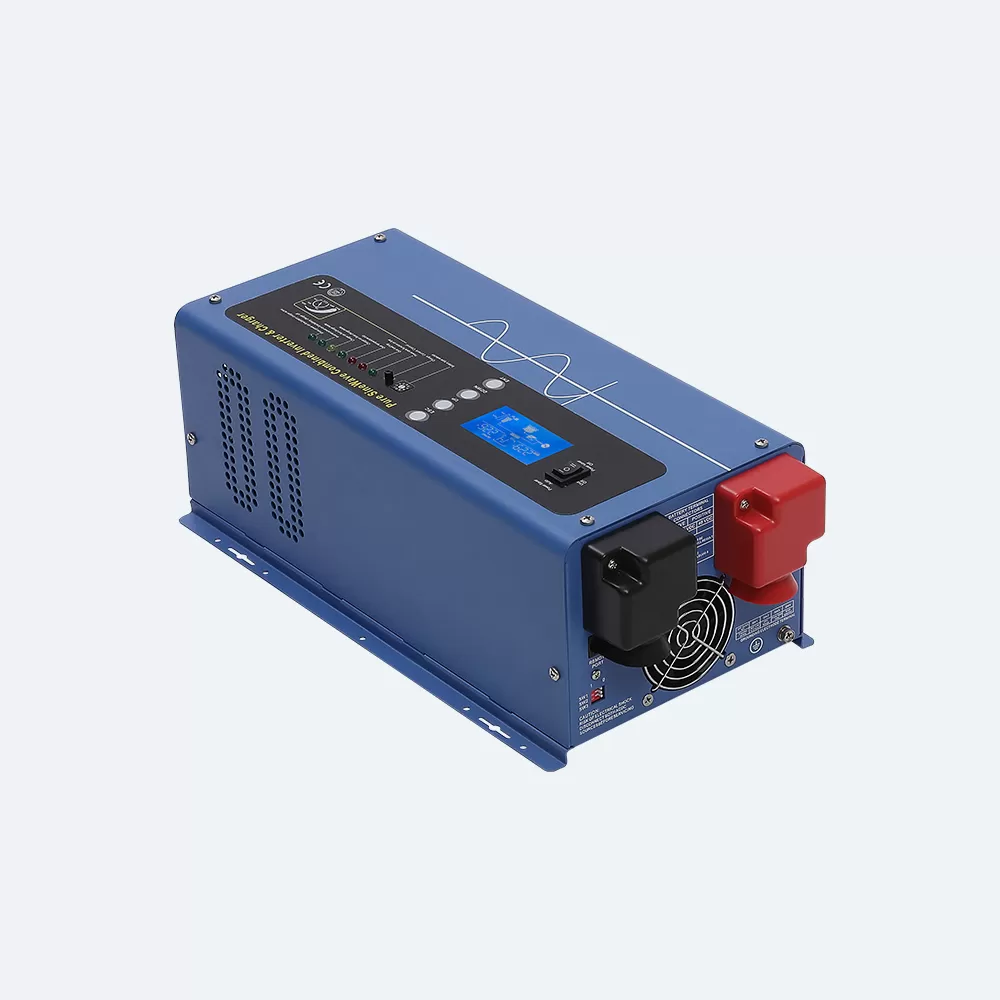

Low Frequency Pure Sine Wave Inverter HC-PV (Short Blue)
The HC-PV Short Blue inverter converts DC battery power into stable AC power for solar power systems, backup power, and off-grid applications. It is designed for users who need reliable power conversion for household appliances, pumps, motors, tools, and other compatible electrical loads.
Compared with the Long Blue version, the Short Blue model prioritizes compact installation and product-line flexibility. Its shorter blue housing makes it suitable for buyers who need a low-frequency pure sine wave inverter with a recognizable appearance, easier product display, and more flexible installation positioning.
Key Features
Short Blue housing design
A shorter blue appearance helps distinguish this model from other HC-PV inverter versions and supports clearer product-line positioning.
Pure sine wave AC output
Provides stable AC power for compatible household appliances, electronics, tools, and backup power applications.
Low-frequency inverter structure
Suitable for systems that require stronger load adaptability and better handling of startup surge demand.
Good for compact installation projects
The short-style design is useful where installation space, product display, or cabinet layout needs to be considered.
Suitable for solar and battery systems
Can be used in battery-based off-grid solar systems and backup power solutions when correctly matched.
Wholesale and OEM/ODM support
Hongyi Electric supports distributors, installers, wholesalers, and private-label buyers with model selection and project matching.
Typical Applications
The HC-PV Short Blue inverter is suitable for off-grid solar systems, home backup power, rural electricity projects, small workshops, farms, outdoor work sites, battery energy storage systems, and compact inverter installation projects.
It is especially suitable for buyers who need a practical low-frequency inverter option but want a shorter product style than the Long Blue version.
How to Select the Right Model
Before ordering, confirm the load power, startup surge power, battery voltage, AC output voltage, frequency, backup time, solar charging requirement, and installation space.
For refrigerators, pumps, motors, compressors, and power tools, always check the startup surge demand before selecting the inverter. For B2B orders, share the system configuration and target market so Hongyi Electric can recommend a suitable model.
