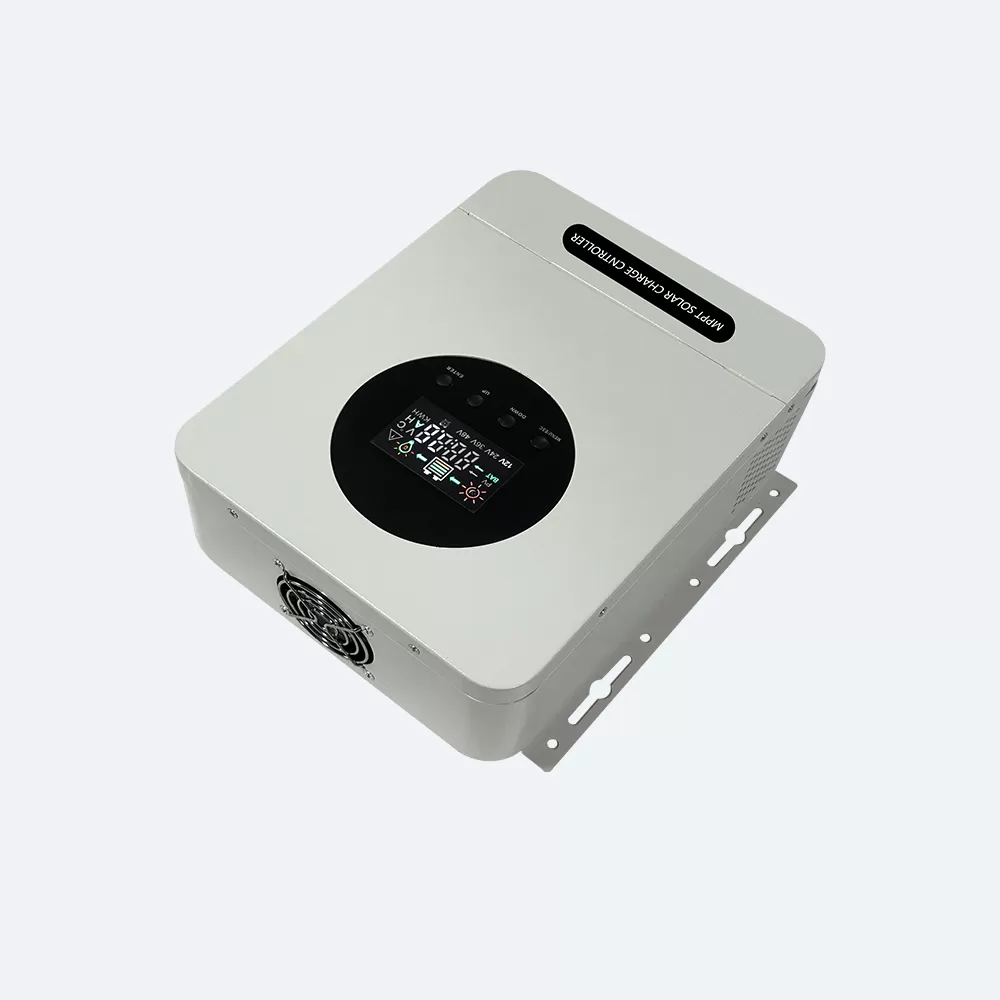

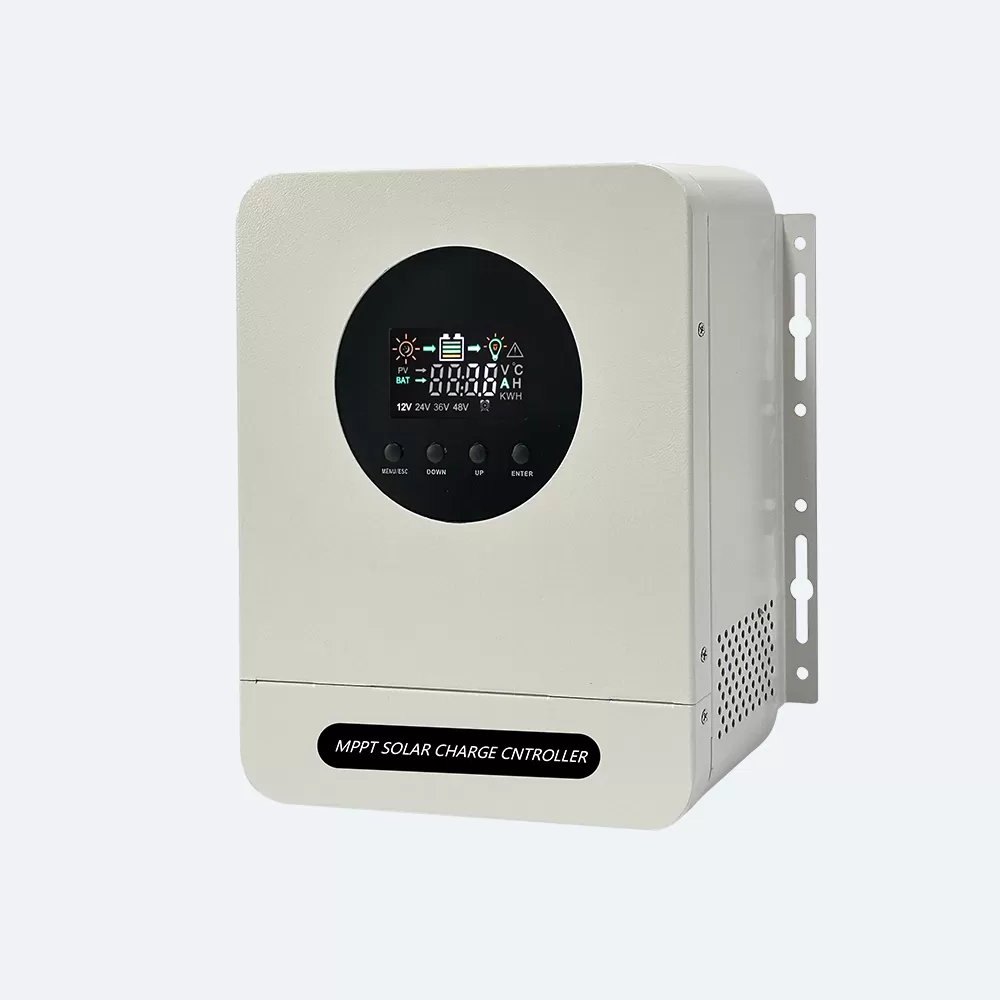

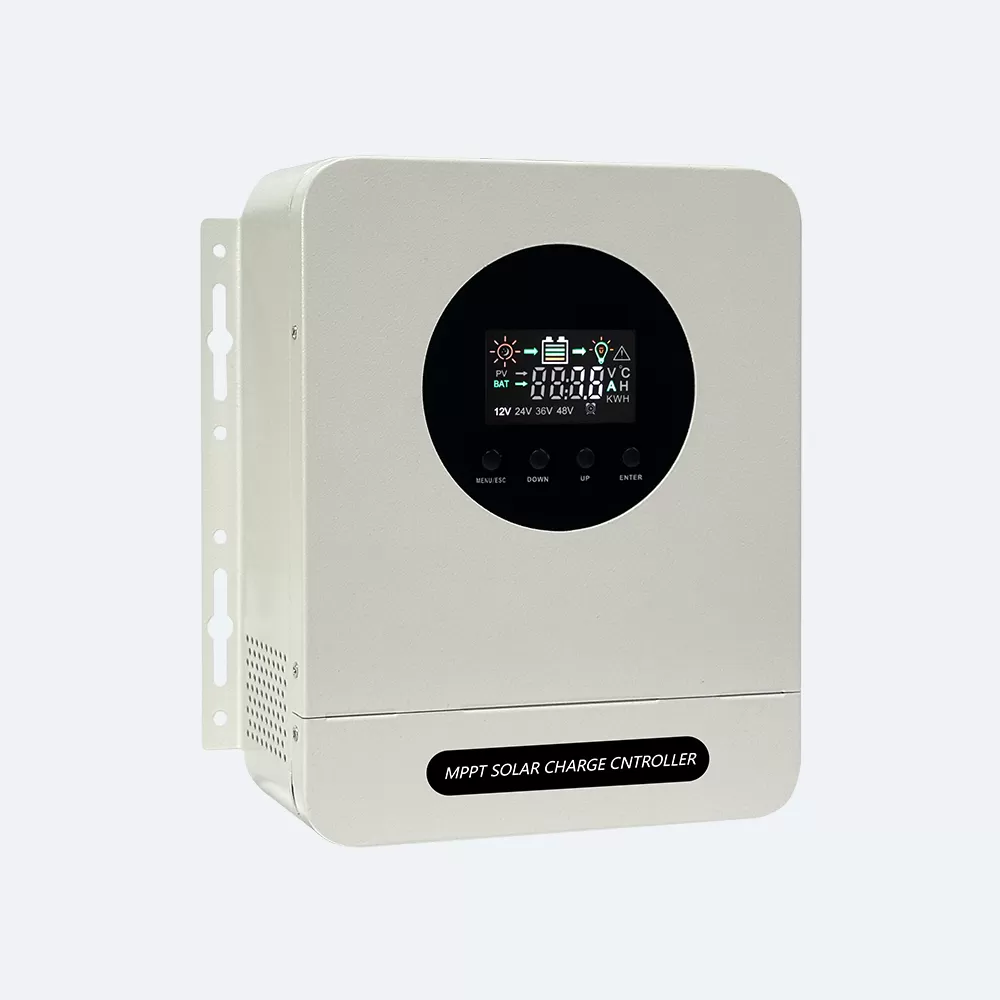

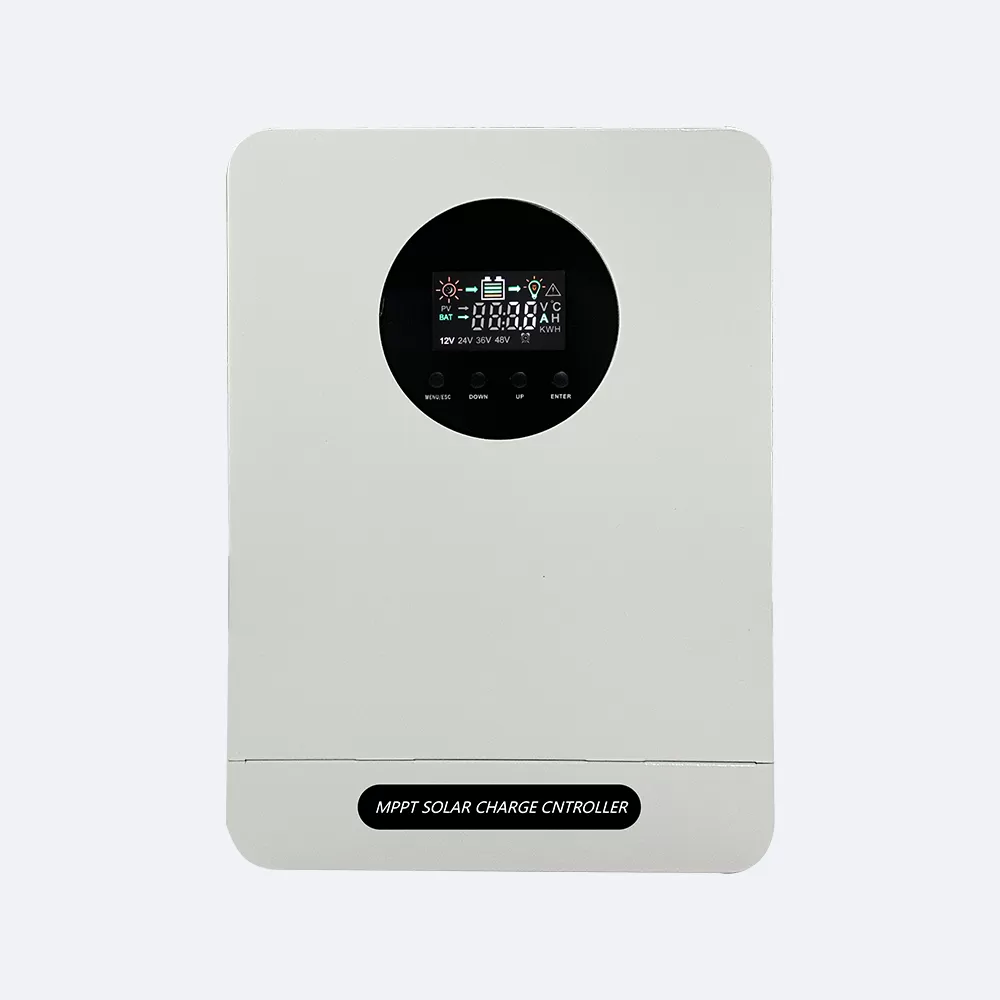

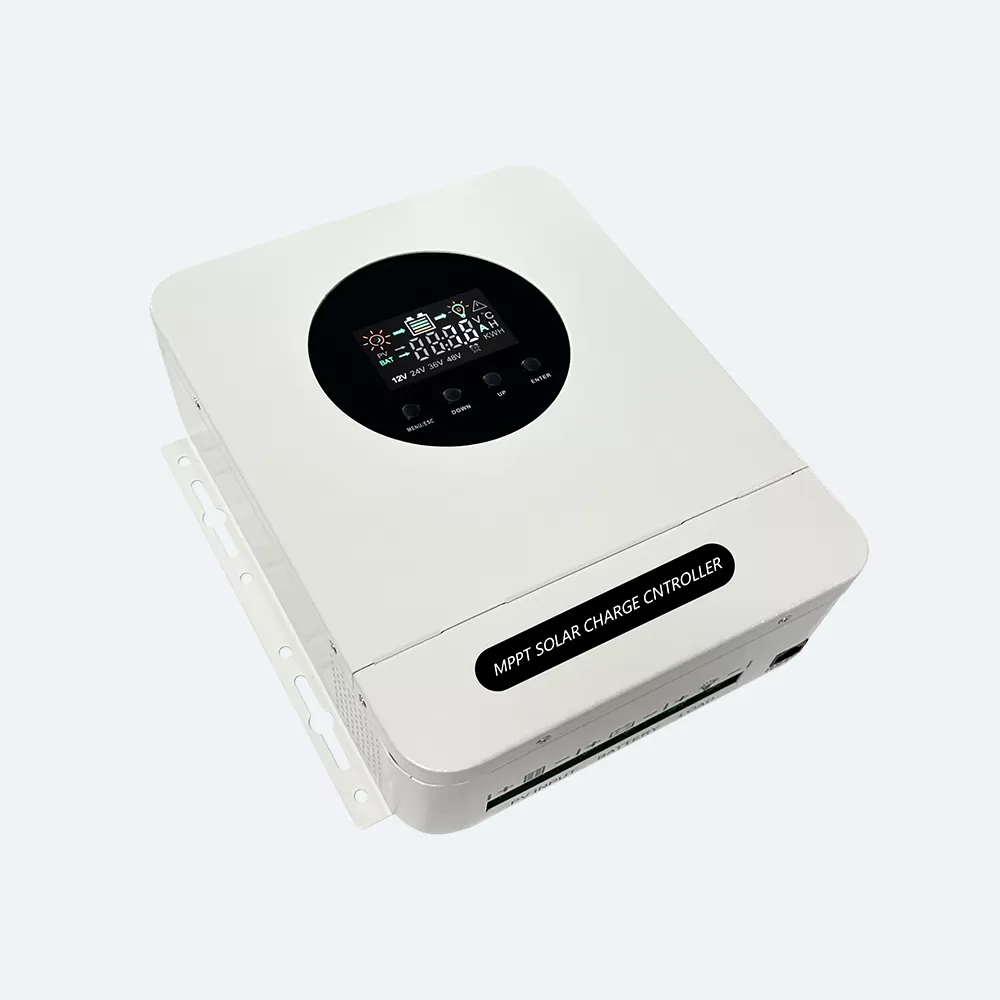

HS-PV Power Frequency Inverter with MPPT Solar Charge Controller
The HS-PV Series combines a low-frequency pure sine wave inverter with optional solar charging in one platform for off-grid and backup power systems. Its 1kW to 12kW model range supports different load sizes, battery-bank voltages and AC output requirements, while selected configurations add MPPT solar charging for direct PV-to-battery energy management.
What This Product Does
This is an inverter-based power system rather than a standalone solar charge controller. The inverter converts battery DC power into stable AC power for connected loads. When the optional solar charging configuration is selected, the integrated controller manages energy from the PV array to charge the battery bank. This combined design can simplify system integration where both AC output and solar charging are required.
Key Benefits
Stable pure sine wave AC output: suitable for household appliances, electronics and many motor-driven loads.
Power options from 1kW to 12kW: choose a model based on continuous load demand, starting surge, and planned system expansion.
High starting-power support: the specification table lists surge capacity up to three times rated output, helping with pumps, refrigerators, compressors and workshop equipment.
Battery-system flexibility: 12V, 24V and 48V configurations are available depending on the selected power model.
Optional MPPT solar charging: selected models support the solar charging current and PV input ranges shown in the table below.
AC input and inverter changeover: a typical transfer time of up to 10ms supports backup-power applications.
Typical Applications
The HS-PV Series is intended for off-grid homes, solar backup systems, cabins, shops, farms, workshops and small commercial sites that need dependable AC output and model-dependent solar battery charging.
How to Choose a Model
Calculate the total continuous wattage of all loads that may operate at the same time.
Check the starting surge of motors, pumps, compressors, refrigerators and other inductive equipment.
Confirm the battery-bank voltage and required AC input/output voltage for the installation.
If PV charging is needed, match the array voltage and required charging current to the selected model.
Selection note: Available battery voltage, AC voltage, and solar charging specifications vary by model. Send us your load list, battery voltage and PV array details for configuration confirmation.
Technical Specifications
Parameter Category | Detailed Parameters | HS-PV1000W | HS-PV2000W | HS-PV3000W | HS-PV4000W | HS-PV5000W | HS-PV6000W | HS-PV8000W | HS-PV10000W | HS-PV12000W |
System Voltage | Nominal Battery Voltage | 12/24/48VDC | 12/24/48VDC | 12/24/48VDC | 24/48VDC | 24/48VDC | 24/48VDC | 48VDC | 48VDC | 48VDC |
Inverter Output | Rated Power | 1.0KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW |
Surge Power | 3000VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | 24000VA | 30000VA | 36000VA |
Output Waveform | Pure Sine Wave / Same as Input (Bypass Mode) |
Efficiency (Peak) | >88% |
Nominal Output Voltage RMS | 100/110/120VAC; 220/230/240VAC ±5% (RMS) | 220/230/240VAC ±5% (RMS) |
Typical Transfer Time | 10ms (max) |
AC Input | Voltage Range | 90-135VAC / 154-264VAC | 154-264VAC |
Battery | Min. Start Voltage | 10.0Vdc (12V mode), *2 (24V), *4 (48V) |
Low Voltage Cut-off | 10.0Vdc (12V mode), *2 (24V), *4 (48V) |
Solar Charging (Optional) | Max Solar Charge Current | 30A | 50A | 60A | 60A | 60A | 60A | 100A | 100A | 100A |
Battery Voltage | 12/24Vdc | 12/24/48Vdc | 12/24/48Vdc | 24/48Vdc | 24/48Vdc | 24/48Vdc | 48Vdc | 48Vdc | 48Vdc |
Max Solar Input Voltage | 100V | 150V | 150V | 150V | 150V | 150V | 230V | 230V | 230V |
Mechanical Specs | Dimensions (W x H x D) mm | 380*375*200 | 425*375*200 | 425*375*200 | 560*420*235 | 560*420*235 | 560*420*235 | 655*490*240 | 655*490*240 | 655*490*240 |
Net Weight (N.W) kg | 19 | 21.3 | 25.7 | 33 | 35.2 | 36.5 | 60.9 | 63.5 | 65.9 |
Other | Operating Temperature | -10°C to 40°C |
Warranty | 2 Years |
